Industrial 600/1000v 35mm 4 Core Fire Resistant Cable with PVC Jacket and Armoured

Ask Lasest Price
Brand Name :	ExactCables
Model Number :	2x1.5
Certification :	CE, RoHS, CCC, 1424 LPCB
Supply Ability :	5000000000 Meter/Meters per Year
Price :	$0.05/meters >=10000 meters

Add to Cart

Product Details
Company Profile

Industrial 600/1000v 35mm 4 Core Fire Resistant Cable with PVC Jacket and Armoured

Product Description

LPCB approved fire resistant cable maintains circuit integrity under fire for a stated period of time and under defined
conditions. With features of thermosetting insulation, resistance to fire, low smoke and low gas emissions, it ensures the maximum fire safety and fire evacuation capability.

Design： BS 7629-1: 2008 Category STANDARD 30 The complete cable shall have a duration of survival of ≥ 30 min when tested as BS EN 50200.

Fire resistance test ：BS EN 50200:2006, class PH30 as 30 minutes to flame at 830°C and mechanical shocks.
BS EN 50200 Annex E, 15 minutes to fire at 830°C and impact + additional 15 minutes of fire, impact and water spray.
BS 5839-1: 2013, clause 26.2d, meet the class PH30 with EN50200.

Fire resistance test ：BS 6387:2013 (Category CWZ)
Category C, 3 hours to flame at 950°C.
Category W, 15 minutes to flame at 650°C and further 15 minutes to flame and water spray.
Category Z, 15 minutes to flame at 950°C with mechanical shocks each 30s.

Smoke emission test ：BS EN 61034-2: 2005, the smoke generated shall result in transmittance values of not less than 80%

Halogen emission test：EN 50267-2-1:1999, less than 0.5% HCI for the outer covering, binder tape & insulation when test.

Certificate	LPCB approved	Standard	BS 7629-1: 2008, STANDARD 30
Operating temperature	-40°C to 200°C (ambient temp. 90°C)	Voltage rating	300V / 500V
Min bending radius	6 x Diameter	Packaging	Reel 500m, or customized
Feature	Sunlight resistant; Sequential footage marking every 1 meter
Application	Primary for emergency lighting circuit, fire detection, fire alarm, voice alarm, etc.

Specification

BS standard LPCB fire resistant cable

* Conductor: Plain annealed copper, as BS EN 60228 Class 1
* Insulation: Fire resistant silicone rubber, EI 2 type as BS
EN 50363-1
* Wrapping: Mica tape

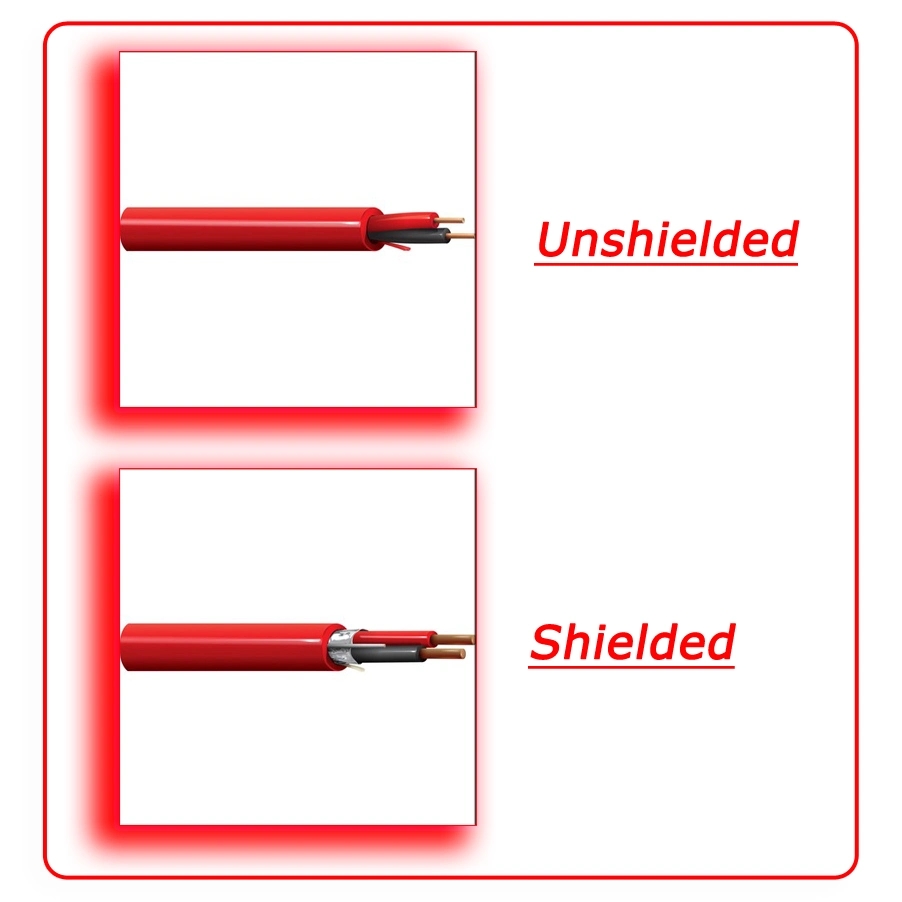

* Screen/Shield: Aluminum foil, thickness ≥ 0.075mm
Tinned copper, 1 x 0.8mm Diameter (0.50mm2)
* Drain wire: LSZH (Low smoke zero halogen) thermoplastic
* Outer Sheath:sheathing compound, LTS 3 type as BS 7655-6.1

Ref. No.	C04-2Cx1.0	C04-2Cx1.5	C04-2Cx2.5
Stranded / solid conductor	Solid	Solid	Solid
Conductor size (mm)	1.13	1.35	1.7
Core NO. x Section (mm )	2 x 1.00	2 x 1.50	2 x 2.50
DC Resistance 20°C (Max, Ω/KM)	18.10	12.10	7.41
Insulation OD (mm)	2.45 ± 0.1	2.60 ± 0.1	2.90 ± 0.1
Insulation THK (mm)	0.62	0.62	0.62
Insulation color	Brown / blue	Brown / blue	Brown / blue
Insulation color	6.60 ± 0.2	7.20 ± 0.2	7.80 ± 0.2
Insulation color	0.60	0.70	0.70
Insulation color	Red	Red	Red

Why Choose Us

We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China.We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Datacables, HDMI cables, Telecommunication cables, Telephone cables, Power cables ,accessory and other various of cables and wires.Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current productioncapacity is about 500,000,000 meters per year.

Customer Photos

Exhibition

Product packaging

Certifications

FAQ

Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
