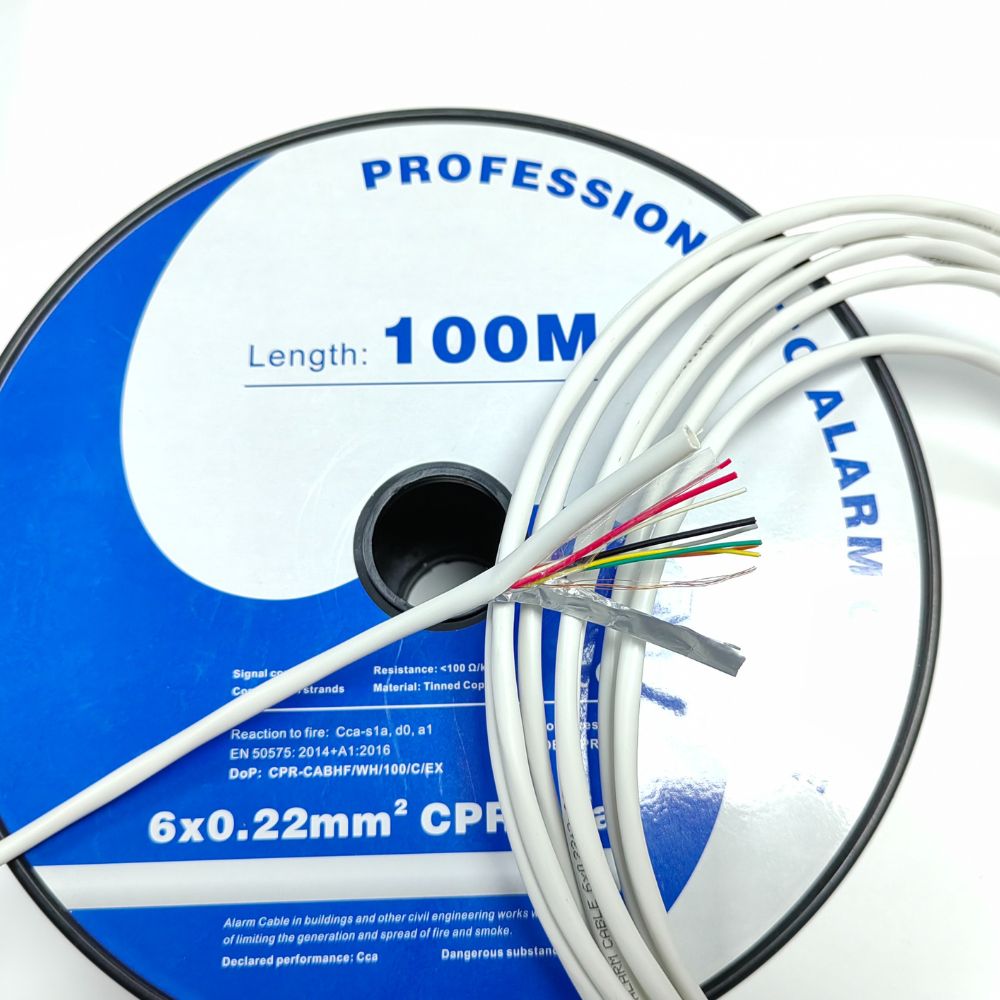

4x0.22 6x0.22 Shielded CCA/BC European Alarm Cable Security Cable for Industrial Needs

Ask Lasest Price
Brand Name :	Exact Cables
Model Number :	CPR Cca Eca alarm/security cable
Certification :	CE, RoHS, CCC, CPR
Supply Ability :	5000000000 Meter/Meters per Year
Price :	$0.03/meters >=10000 meters

Add to Cart

Product Details
Company Profile

4x0.22 6x0.22 Shielded CCA/BC European Alarm Cable Security Cable for Industrial Needs

Product Description

CPR CLASSIFICATIONS
Cca-s1a, d0, a1

APPLICATION
Used for connections in intrusion detection systems. In the most risky environments in the event of a fire, such as health
facilities, entertainment venues and entertainment in general, gyms and sports centers. Hotels, guest houses, motels, villages,
tourist residences - hotels. Schools of every level, grade and type. Exhibitors and / or retailers. Companies and offices with
more than 300 people present; Libraries and archives, museums, galleries, exhibitions and exhibitions. Buildings intended for
civil use, with a fire height of more than 24m. (Average Risk)

4x0.22 6x0.22 Shielded CCA/BC European Alarm Cable Security Cable for Industrial Needs

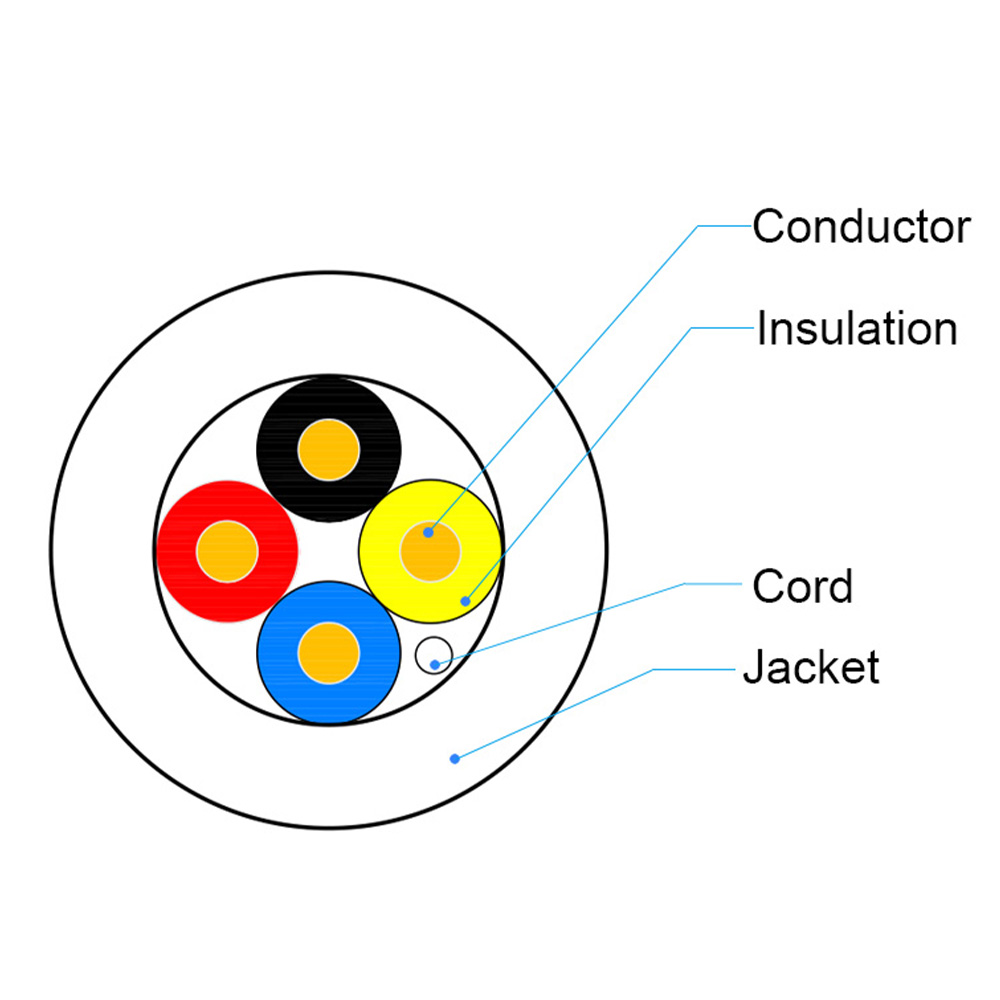

Specification

Features	Values	Rules
Conductors	annealed red copper cl.5 7/0.15BC	CEI EN 60228
Insulation	LSZH compound 0.22mm2: 1.0mm, 0.75mm2:1.7mm
Cores colour	alarm colours (Tab 1) - Red-Black (power supply)
Assembling	Pet tape
Drain wire	Copper clad aluminium 7x0.15CCA
Screen	Al/Pet tape
Sheath	LSZH compound	CEI EN 50363
Sheath colour	white RAL 9010
Halogen free	(< 0,5 mg/g - 0,5%)	CEI EN 50267-2-1/2 - IEC 60754-1/2
Testing voltage	2000 V
Max working temperature	70 °C
Short circuit temperature	160 °C
Min. installation temperature	0 °C
Bending radius	Ø x 8

Part N0.	Description	Item	Conductor Spec.	Insulation			Jacket			Packing
Part N0.	Description	Item	Conductor Spec.					Nom Thick. (mm)	Nom Diam (mm)	Packing	Nom Thick. (mm)	Nom Diam (mm)
ECAC001	TC or BC or CCA or TCCA or TCCAM, Screened or Unscreened; Rip cord or NO. Drain wire or NO.	2x0.22 mm2	2×7/0.2	0.22	1.05	0.45	3.1	Box Coil Drum Paper reel Plastic reel Wooden reel
ECAC002			4x0.22 mm2	4×7/0.2	0.22	1.05	0.45		3.4
ECAC003			6x0.22 mm2	6×7/0.2	0.22	1.05	0.5		4.1
ECAC004			8x0.22 mm2	8×7/0.2	0.22	1.05	0.5		4.5
ECAC005			10x0.22 mm2	10×7/0.2	0.22	1.05	0.6		5.1
ECAC006			12x0.22 mm2	12×7/0.2	0.22	1.05	0.6		5.5
ECAC007			14x0.22 mm2	14×7/0.2	0.22	1.05	0.7		6.1
ECAC008			16x0.22 mm2	16×7/0.2	0.22	1.05	0.7		6.4
ECAC009			20x0.22 mm2	20×7/0.2	0.22	1.05	0.8		7.2

Why Choose Us

We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China.We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Datacables, HDMI cables, Telecommunication cables, Telephone cables, Power cables ,accessory and other various of cables and wires.Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current productioncapacity is about 500,000,000 meters per year.

Customer Photos

Exhibition

Product packaging

Certifications

FAQ

Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
