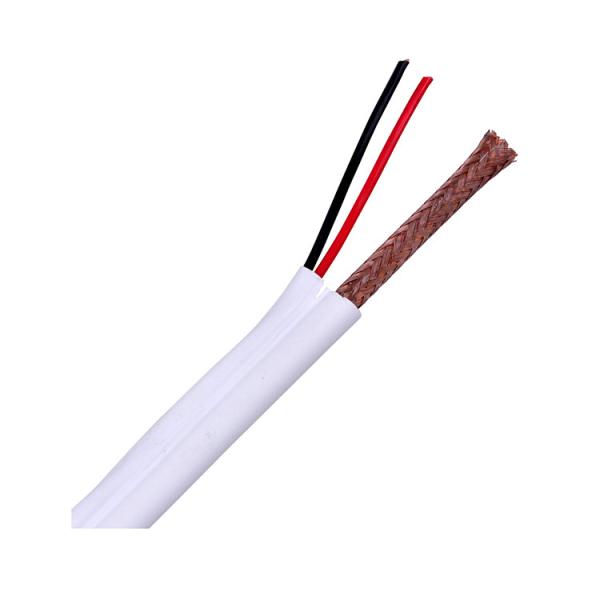

Communication CCTV CATV CPR Eca RG59 Coaxial Cable

PRODUCT DESCRIPTION:

• Inner Conductor:1/0.60mm BC or CCS
• lnsulation:3.70mm Solid Polyethylene
• Shield: Bare copper Braid
• Jacket: 6.00mm PVC
• Flammability grade: CMX,CM
• Operating temperature: -40~70ºC or-25~70ºC
• Reference Standard:MIL-C-17

ELECTRICALCHARACTERISTICS

• Impedance:75±3Ω
• Capacitance:66±3pF/m
• Max Attenuation:(20ºC)

55	dB/100m	6.73
83		8.04
187		11.81
211		12.47
250		13.45
300		14.60
350		15,75
400		16.73
450		17.72
500		18.70
550		19.52
600		20.34
750		22.87
865		24.67
1000		26.64

APPLICATlON
Used as a connection cable in the radio-communication.
